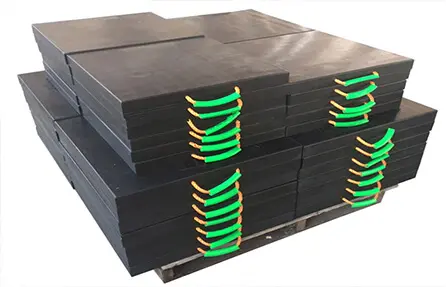

| Product Name | Polyethylene crane outrigger pads pe outrigger pad crane stabiliser pad |
| Material | UHMWPE HDPE PE1000 PE 500 |
| Color | black, white, yellow, red, blue or other required colors |
| Production process | molding process |

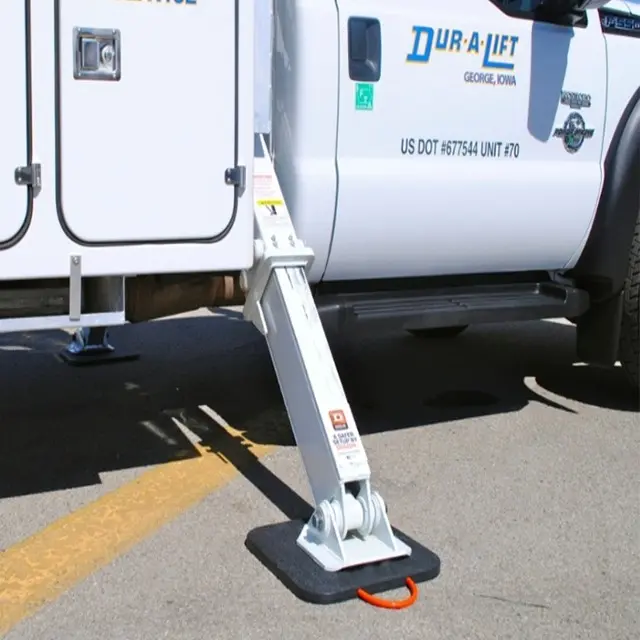

| Used | used as crane pad, jack support pad |
| Specification | |||
|---|---|---|---|
| Square Outrigger Pad | Round Outrigger Pad | ||
| Common size | Loading capacity for crane feed | Common size | Loading capacity for crane feed |
| 300*300*40mm | 3-5 tons | 300*40mm | 2-6 tons |
| 400*400*40mm | 4-6 tons | 400*40mm | 3-7 tons |
| 400*400*50mm | 6-10 tons | 500*40mm | 4-8 tons |
| 500*500*40mm | 10-12 tons | 500*50mm | 8-12 tons |
| 500*500*50mm | 12-15 tons | 600*40mm | 10-14 tons |
| 500*500*60mm | 13-17 tons | 600*50mm | 12-15 tons |
| 600*600*40mm | 15-18 tons | 600*60mm | 15-20 tons |
| 600*600*50mm | 16-20 tons | 700*50mm | 22-30 tons |
| 600*600*60mm | 18-25 tons | 700*60mm | 25-32 tons |
| 700*700*60mm | 25-35 tons | 700*70mm | 30-35 tons |
| 800*800*70mm | 30-45 tons | 800*70mm | 40-50 tons |
| 1000*1000*80mm | 50-70 tons | 1000*80mm | 45-60 tons |
| 1200*1200*100mm | 60-100 tons | 1200*100mm | 50-90 tons |
| 1500*1500*100mm | 120-180 tons | 1500*100mm | 80-150 tons |
| Customized size and shape on demand | |||

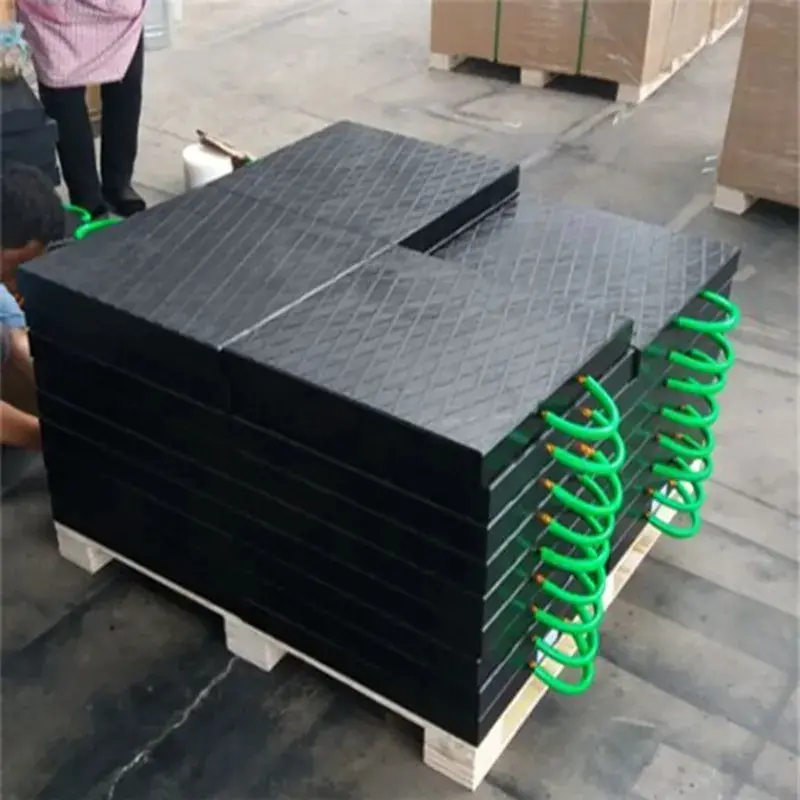

We have Various non-slip texture groundmat for your choice.
It has strong bearing capacity and complete specifications. According to different tonnage of machinery and equipment, free matching methods are provided, and the load-bearing capacity is more than 15-18 tons.
Humanized portable rope design, light weight, convenient to place, carry and transport.
