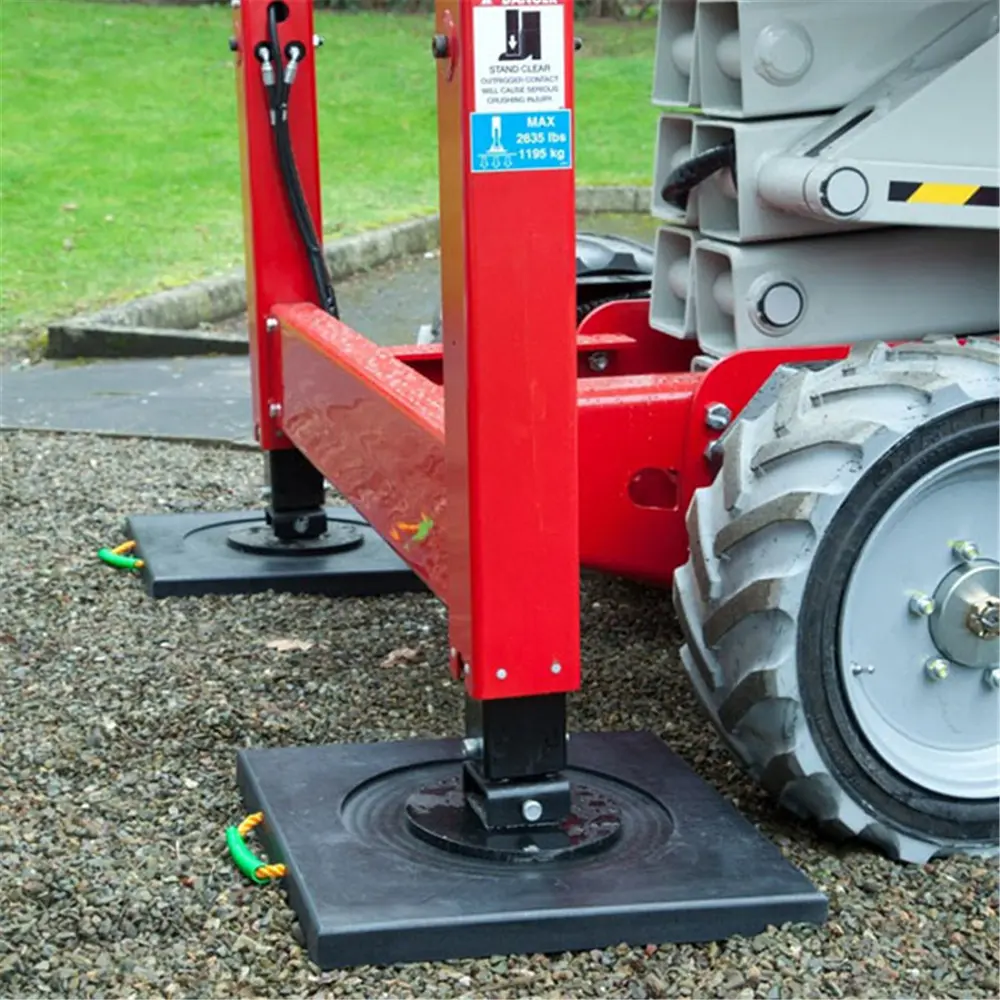

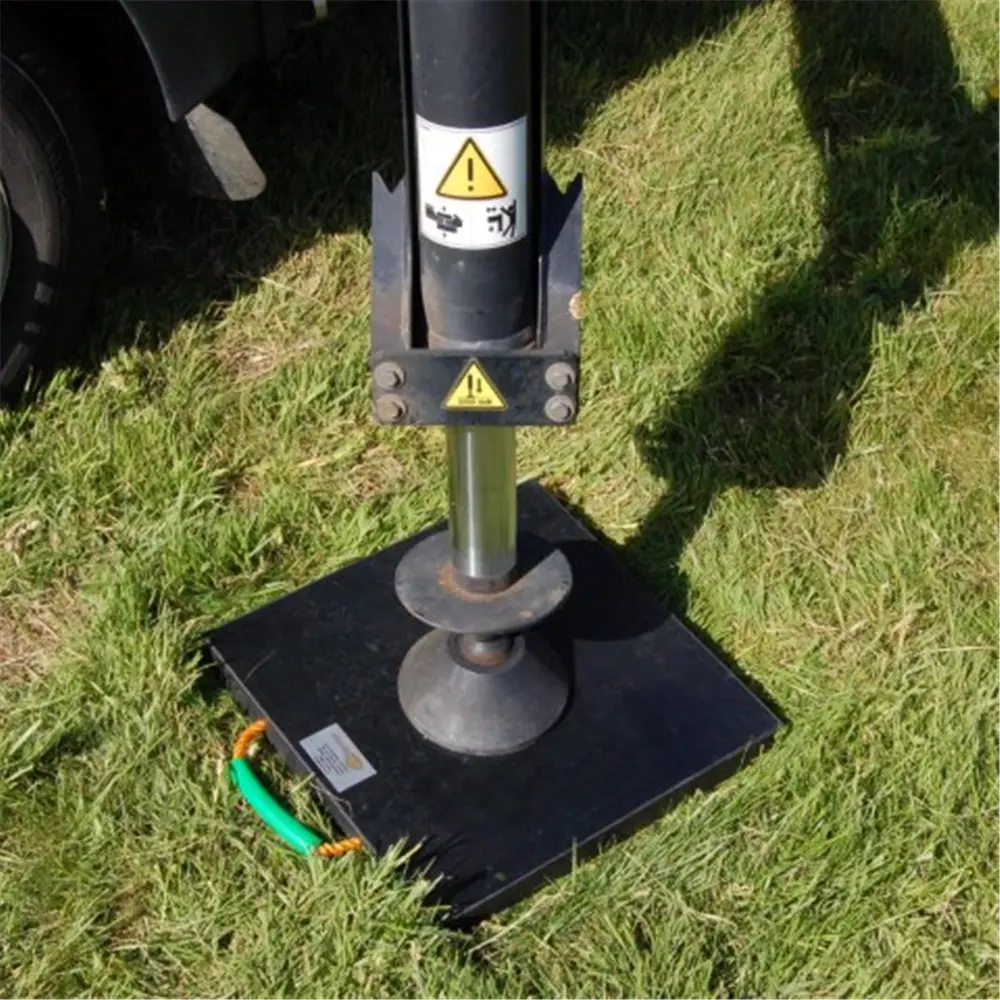

High quality high performance UHMWPE / HDPE outrigger pads.
| Size (mm) | Weight (kg) | Vertical Jack Capacity (Ton) | Crane Capacity (Ton) |
|---|---|---|---|
| 400*400*40 | 6.3 | 10 | 12 |
| 500*500*40 | 9.9 | 12 | 15 |
| 600*600*40 | 14.2 | 20 | 25 |
| 700*700*40 | 19.4 | 22 | 30 |
| 800*800*40 | 25.3 | 25 | 30 |
| 1000*1000*40 | 39.2 | 30 | 35 |
| 400*400*50 | 8 | 11 | 15 |
| 500*500*50 | 12.2 | 15 | 18 |
| 600*600*50 | 18 | 23 | 30 |
| 800*800*50 | 31.3 | 30 | 35 |
| 1000*1000*50 | 48 | 40 | 50 |
| 400*400*60 | 9.5 | 12 | 15 |
| 500*500*60 | 14.5 | 20 | 25 |
| 600*600*60 | 21.2 | 25 | 30 |
| 800*800*60 | 38.4 | 35 | 45 |
| Size (mm) | Weight (kg) | Vertical Jack Capacity (Ton) | Crane Capacity (Ton) |
|---|---|---|---|
| 800*50 | 25 | 25 | 30 |
| 900*50 | 30 | 30 | 40 |
| 1000*50 | 38.5 | 35 | 45 |
| 800*60 | 30 | 30 | 35 |
| 900*60 | 37.5 | 35 | 45 |
| 1000*60 | 40 | 40 | 50 |
| 1000*80 | 61.5 | 70 | 80 |
| 1200*80 | 110 | 100 | 120 |
These outrigger pads are manufactured from high-quality, high-performance UHMWPE (Ultra-High-Molecular-Weight Polyethylene) and HDPE (High-Density Polyethylene) to ensure maximum strength and durability under extreme loading conditions.
Unlike wood, polyethylene outrigger pads do not absorb moisture, rot, splinter, or crack. They offer superior wear resistance, chemical resistance, and come with an unlimited lifetime warranty, making them a much safer and cost-effective solution.

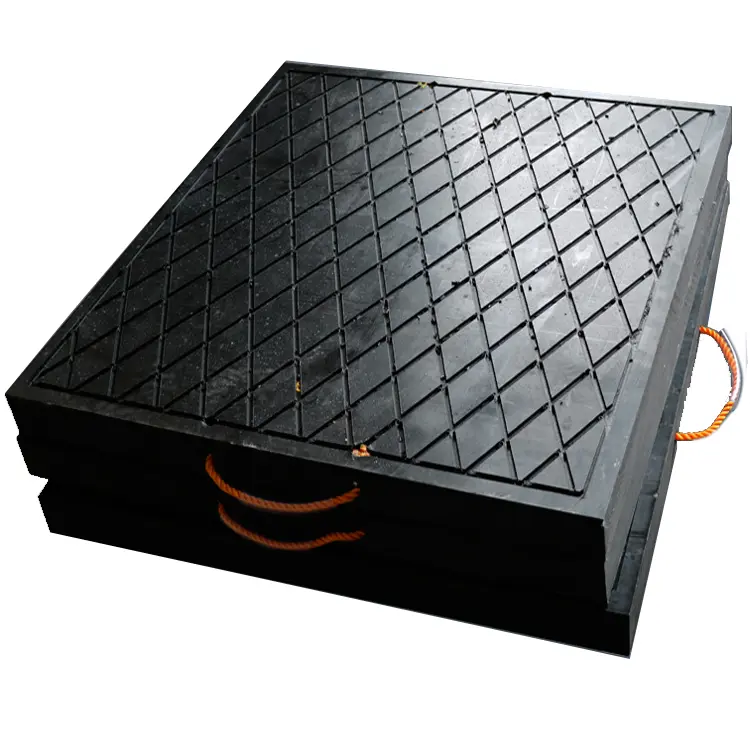

Square pads offer a larger surface area for load distribution and are ideal for standard setups. Round pads are highly recommended for applications where the pad might need to be rolled into place, or where space configuration fits a circular footprint better.
No. These pads are virtually maintenance-free. They are waterproof, chemical-resistant, and can be easily cleaned with water or standard detergents after field handling.
Yes, our outrigger pads are designed with safety and ergonomics in mind, featuring custom hand cut-outs that allow operators to easily grip, carry, and place the pads during set up.
