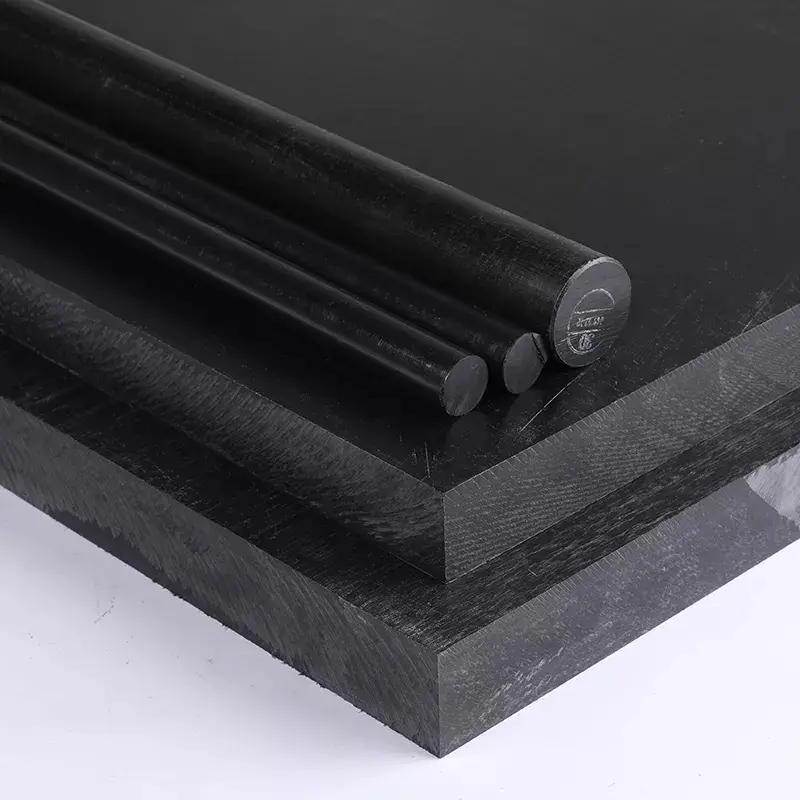

PEEK Sheet engineering plastics have a broad application space related to aviation, machinery, electronics, chemical industry, automobiles and other high-tech industry. Alternative to fluoropolymers, these sheets are applicable for manufacturing insulation materials, gears, bearings, bushes and valves. Mechanical parts and accessories can be manufactured in stringent requirements, such as gears, bearings, piston rings, supporting rings, sealing rings (letter), valves, and other wear circles.
In its solid state, PEEK is readily machinable by CNC milling machines and is commonly used to produce high-quality plastic parts that are thermostable and both electrically and thermally insulating. PEEK is often considered a superior high-end engineering plastic.
PEEK is the perfect choice for any high-tolerance, high-heat, chemical resistant plastic requirements.
| Specification (mm) | Tolerance (mm) | Weight per sheet (kg) |
|---|---|---|
| 600*1200*5 | 0.2~0.8 | 5.35 |
| 600*1200*6 | 0.2~0.8 | 6.65 |
| 600*1200*8 | 0.2~0.8 | 8.5 |
| 600*1200*10 | 0.2~0.8 | 10.45 |
| 600*1200*12 | 0.2~0.8 | 12.55 |
| 600*1200*15 | 0.2~0.8 | 15.05 |
| 600*1200*20 | 0.2~0.8 | 20.6 |
| 600*1200*25 | 0.2~0.8 | 25.5 |
| 600*1200*30 | 0.2~0.8 | 31.65 |
| 600*1200*35 | 0.2~0.8 | 36.5 |
| 600*1200*40 | 0.2~0.8 | 40.5 |
| 600*1200*50 | 0.2~0.8 | 51.7 |
| 600*1200*60 | 0.2~0.8 | 61.35 |
PEEK engineering plastics are widely used in high-tech fields such as aviation, machinery, electronics, chemical industries, and automobiles.
PEEK sheets exhibit excellent thermal stability, operating efficiently in temperatures ranging from -40°C up to +260°C.
Yes, PEEK is a superior high-end engineering plastic that acts as an excellent alternative to fluoropolymers for demanding high-heat and chemical resistant requirements.
Yes, in its solid state, PEEK is highly machinable by CNC milling machines and is commonly used for manufacturing high-tolerance plastic components.
They are ideal for manufacturing stringent mechanical parts and accessories including insulation materials, gears, bearings, bushes, piston rings, supporting rings, sealing rings, and valves.
PEEK offers extreme strength, high wear resistance, creep resistance, noise dampening, high-energy radiation resistance, and outstanding hydrolysis resistance, even against super-heated steam.
