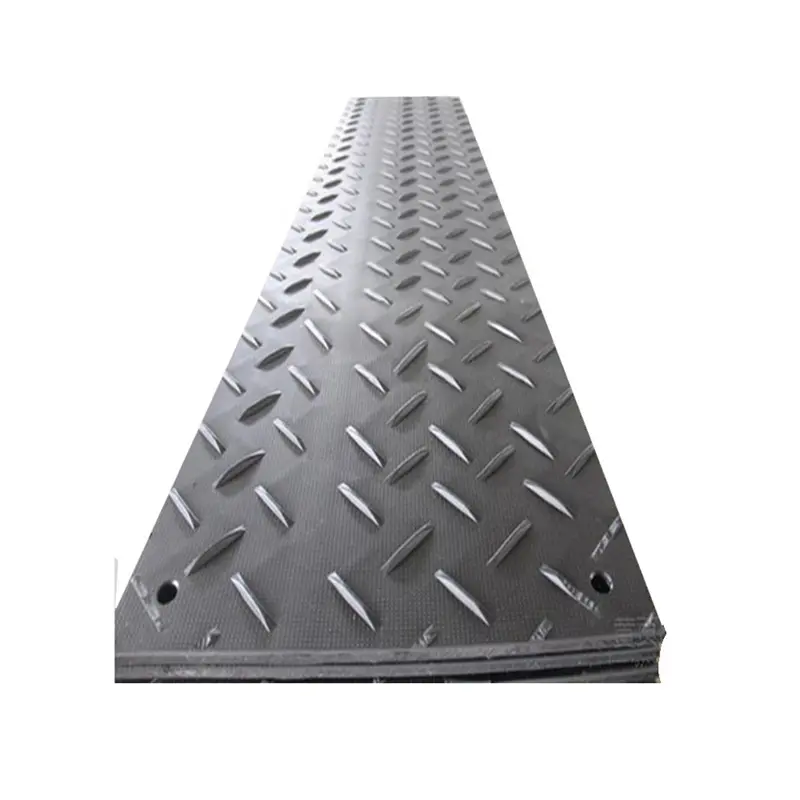

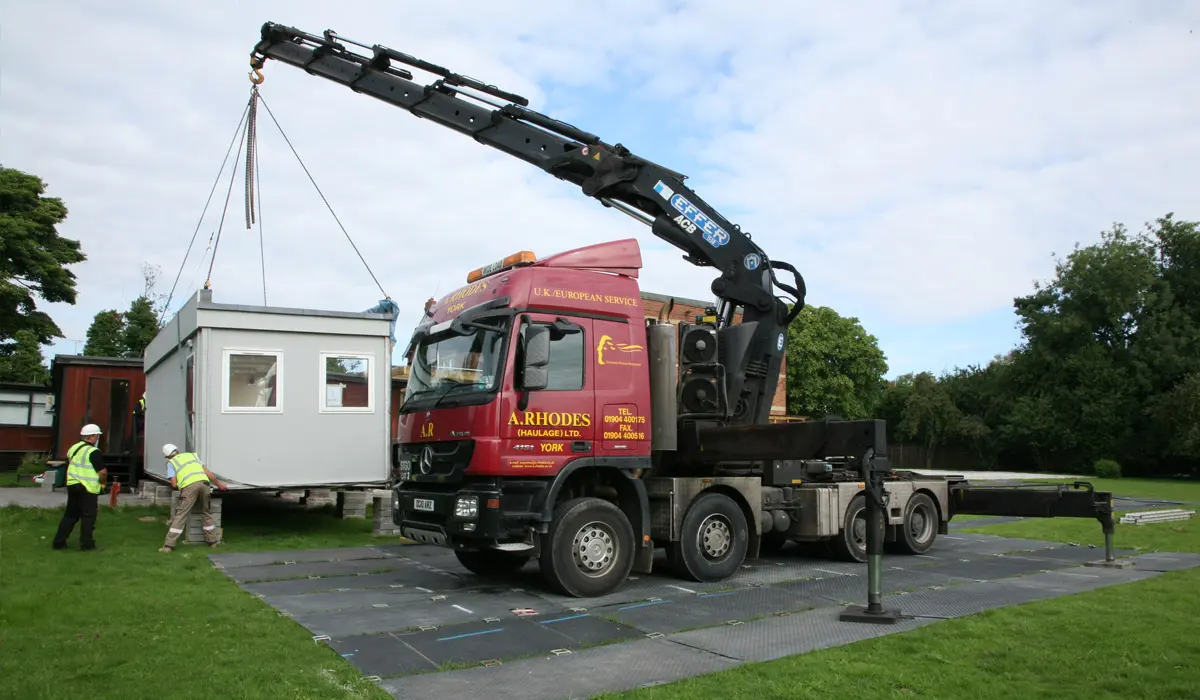

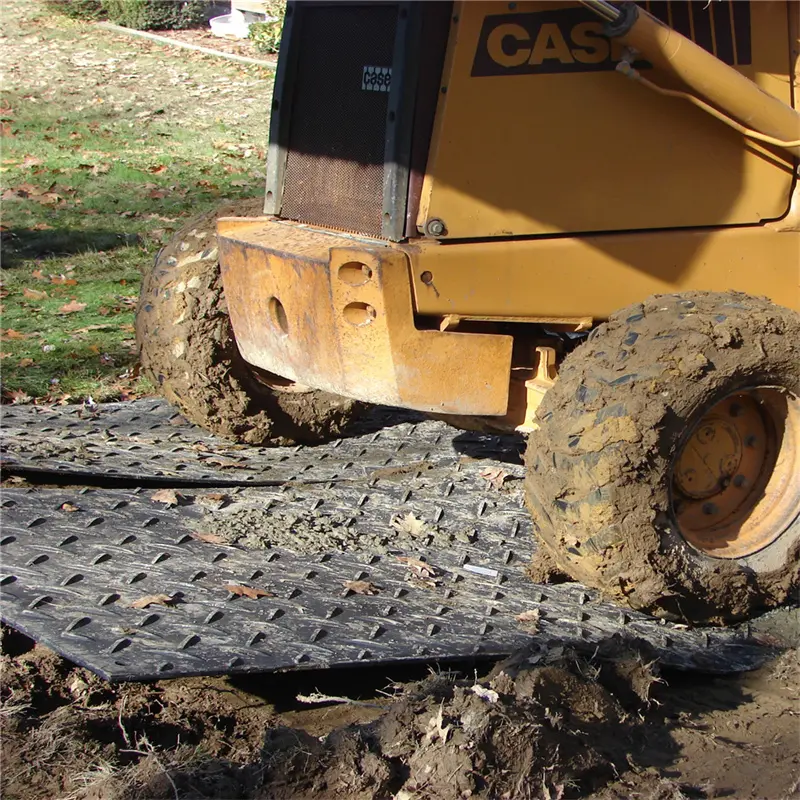

PE Ground protection mats help maintain lawns, landscaping and even concrete surfaces. These PE mats can support the heaviest equipment, so it can be used by beautification contractors, homeowners, construction contractors and event organizers.
Regular size
Thickness
Color
1220*2440mm (4'*8')
10mm/12mm/12.7mm/15mm/18mm/20mm/25mm
Black, green, blue, yellow and other custom
910*2440mm (3'*8')
610*2440mm (2'*8')
910*1830mm (3'*6')
610*1830mm (2'*6')
610*1220mm (2'*4')
1250*3100mm
20-50 mm
Black red white blue green brown, etc.
Customization
Available upon request
Product Features
⚡Durability & Resistance
Anti-weather & anti-aging self-lubricating design. Very low coefficient of friction with excellent chemical, corrosion, and superior impact resistance. Provides noise and vibration absorption.
❄️Temperature Range
Operational range of -260℃ to +80℃. Very high resistance to extreme cold, ensuring it does not become fragile even under -80℃. High tensile strength, non-toxic, odorless, and UV resistant.
🔥Safety & Protection
Flame retardant with relatively low water absorption. Excellent electrical properties and good performance in resisting environmental stress cracks. No adhesion.
🌱Handling & Efficiency
Lightweight, easy to handle, and quick to fix. Highly cost-efficient, resulting in low energy consumption. Does not rot, split, or crack. 100% recyclable, making it a great liner material for industrial applications.
Product Testing
Item
Test method
Unit
UHMWPE 1000-V
UHMWPE 1000-DS
Density
ISO1183-1
g/cm3
0.93-0.95
0.95-0.96
Yield Strength
ASTM D-638
N/mm2
15-22
15-22
Breaking Elongation
ISO527
%
≥200%
≥100%
Impact strength
ISO179
Kj/m2
130-170
90-130
Abrasion
ISO15527
Steel=100
80-110
110-130
Shore Hardness
ISO 868
Shore D
63-64
63-67
Friction Coefficient (Static)
ASTM D-1894
Unitless
≤0.2
≤0.2
Operating temperature
-
℃
-80 to +80
-80 to +80

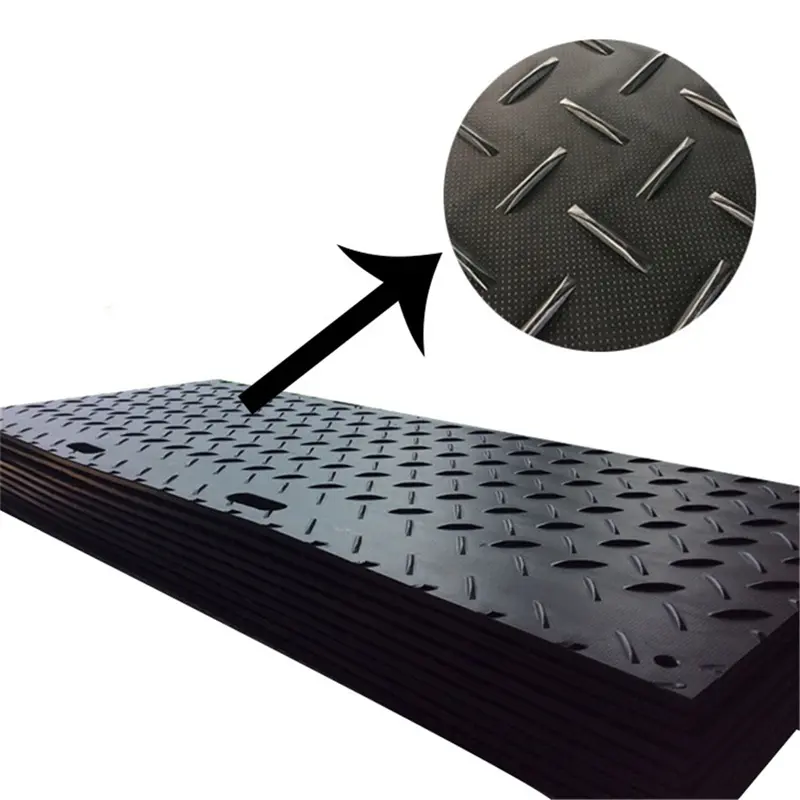

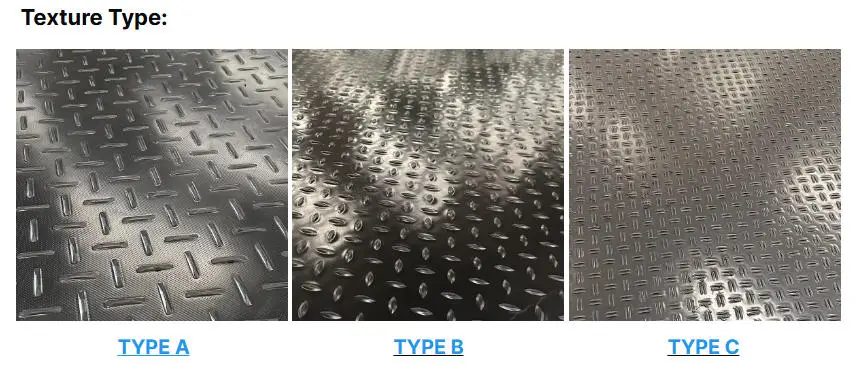

Details Images
Product Packing
FAQ
Q1: Are you a manufacturer?
A1: Yes, we have been providing professional products in this industry for over 10 years.
Q2: Is customization available?
A2: Yes, customization is fully available according to the detailed drawings you provide.
Q3: What are the payment methods?
A3: We accept Paypal, T/T payment, Trade Assurance, and other payment methods. For further details on payment options, please contact us.
Q4: How do you manage quality control?
A4: We have a dedicated research & development quality control center where we rigorously test every order.
Q5: Can you supply samples?
A5: Yes, we offer small samples free of charge, though air freight shipping costs will be covered by the customer.
Q6: What is the lead time for samples and mass production?
A6: Generally, stocked samples are sent via air express within 3-5 days. Mass production is normally completed within 30 days, or adjusted according to your specific order.
