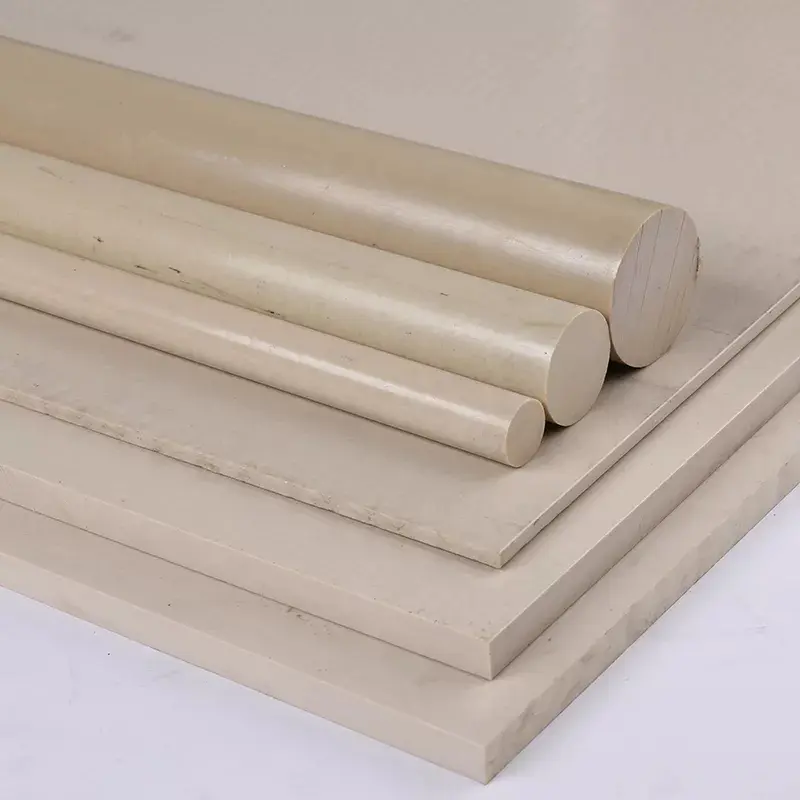

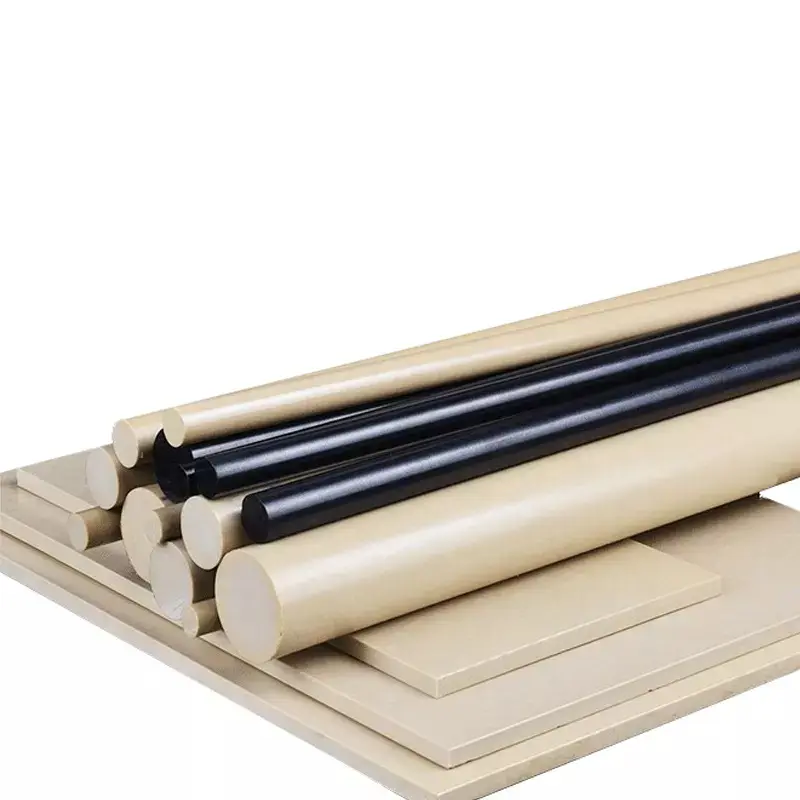

PEEK ROD engineering plastics have a broad application space related to aviation, machinery, electronics, chemical industry, automobiles and other high-tech industry. Alternative to fluoropolymers, these sheets are applicable for manufacturing insulation materials, gears, bearings, bushes and valves. Mechanical parts and accessory can be manufactured in stringent requirements, such as gears, bearings, piston rings, supporting ring, sealing ring (letter), valves, and other wear circle.
In its solid state, PEEK is readily machinable by CNC milling machines and is commonly used to produce high-quality plastic parts that are thermostable and both electrically and thermally insulating. PEEK is often considered a superior high-end engineering plastic.
PEEK is the perfect choice for any high-tolerance, high-heat, and chemical resistant plastic requirements.
| Specification (mm) | Tolerance (mm) | Weight per rod (kg) |
|---|---|---|
| 6 * 1000 | 0.2 ~ 0.8 | 0.047 |
| 8 * 1000 | 0.2 ~ 0.8 | 0.077 |
| 10 * 1000 | 0.2 ~ 0.8 | 0.12 |
| 12 * 1000 | 0.2 ~ 0.8 | 0.168 |
| 15 * 1000 | 0.2 ~ 0.8 | 0.278 |
| 20 * 1000 | 0.2 ~ 0.8 | 0.47 |
| 22 * 1000 | 0.2 ~ 0.8 | 0.5 |
| 25 * 1000 | 0.2 ~ 0.8 | 0.7 |
| 30 * 1000 | 0.2 ~ 0.8 | 1 |
| 35 * 1000 | 0.2 ~ 0.8 | 1.35 |
| 40 * 1000 | 0.2 ~ 0.8 | 1.75 |
| 45 * 1000 | 0.2 ~ 0.8 | 2.2 |
| 50 * 1000 | 0.2 ~ 0.8 | 2.7 |
| 55 * 1000 | 0.2 ~ 0.8 | 3.2 |
| 60 * 1000 | 0.2 ~ 0.8 | 3.95 |
| 65 * 1000 | 0.2 ~ 0.8 | 4.5 |
| 70 * 1000 | 0.2 ~ 0.8 | 5.34 |
| 75 * 1000 | 0.2 ~ 0.8 | 5.92 |
| 80 * 1000 | 0.2 ~ 0.8 | 7.05 |
| 85 * 1000 | 0.2 ~ 0.8 | 7.62 |
| 90 * 1000 | 0.2 ~ 0.8 | 8.8 |
| 100 * 1000 | 0.2 ~ 0.8 | 11 |
| 110 * 1000 | 0.2 ~ 0.8 | 12.6 |
| 120 * 1000 | 0.2 ~ 0.8 | 15.2 |
| 130 * 1000 | 0.2 ~ 0.8 | 18.3 |
| 140 * 1000 | 0.2 ~ 0.8 | 21.1 |
| 150 * 1000 | 0.2 ~ 0.8 | 24.15 |
| 160 * 1000 | 0.2 ~ 0.8 | - |
Q1: What are the main applications of PEEK Rods?
A1: PEEK rods are extensively used in aviation, machinery, electronics, chemical processing, and automotive industries. They are ideal for manufacturing high-stress components such as gears, bearings, piston rings, support rings, seal rings, and valves.
Q2: What is the operating temperature range for PEEK material?
A2: PEEK features outstanding thermal stability, suitable for continuous operation in environments ranging from -40°C up to +260°C.
Q3: How does PEEK perform under chemical or steam exposure?
A3: PEEK exhibits superior hydrolysis resistance, meaning it maintains its structural integrity and mechanical properties even when exposed to super-heated steam and harsh chemicals.
Q4: Is PEEK easy to machine into custom parts?
A4: Yes, in its solid state, PEEK is highly machinable. It is commonly processed using CNC milling and lathe machines to produce tight-tolerance components that require thermal and electrical insulation.
Q5: Can PEEK rods replace traditional fluoropolymers?
A5: Absolutely. PEEK is frequently chosen as a high-end alternative to fluoropolymers when applications require higher mechanical strength, better wear resistance, and superior creep resistance under load.
Q6: What makes PEEK a high-end engineering plastic?
A6: PEEK combines extreme mechanical strength, high wear resistance, noise dampening characteristics, radiation resistance, and remarkable chemical stability, making it one of the most reliable polymers for extreme environments.
