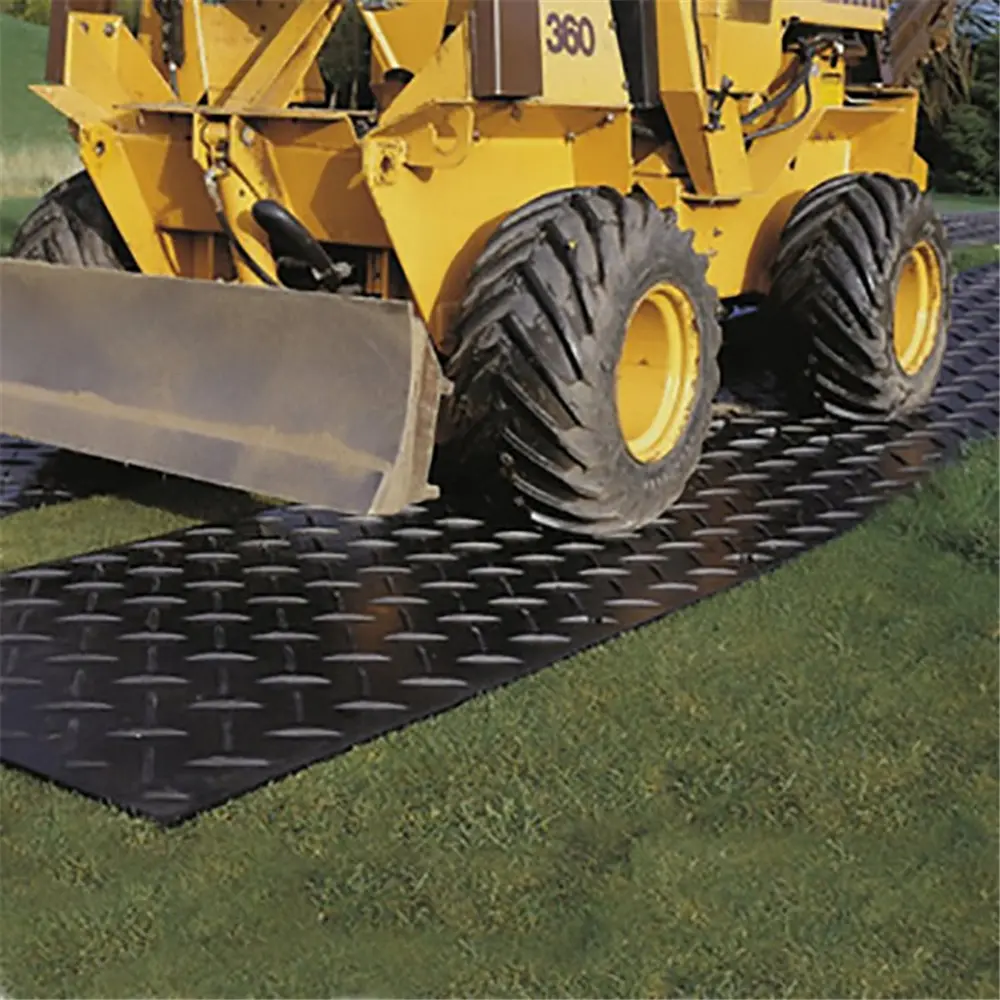

PE temporary ground protection road mats (UHMWPE / HDPE) are designed as reliable temporary roads. They effectively prevent damage to the environment and existing roadways, significantly improve construction work efficiency, and minimize the overall footprint and environmental impact on construction sites.
| Physical Properties | ASTM Standard | Unit | Value |
|---|---|---|---|
| Water absorption rate | D570 | % | <0.01% |
| Compressive strength | D638 | Mpa | ≥27 |
| Shore hardness | D2240 | Shore D | 65 |
| Heat distortion temperature | D648 | ℃ | 85 |
| Embrittlement temperature | D746 | ℃ | <-40 |
| Size | Thickness | Color options |
|---|---|---|
| 1220mm*2440mm (4'*8') | 10mm - 12.7mm - 15mm | Black, green, blue, yellow, and customized options |
| 910mm*2440mm (3'*8') | ||
| 610mm*2440mm (2'*8') | ||
| 910mm*1830mm (3'*6') | ||
| 610mm*1830mm (2'*6') | ||
| 610mm*1220mm (2'*4') | ||
| 1250mm * 3100mm | 20mm - 50mm | Black, red, white, blue, green, brown, etc. |
They are manufactured using high-quality UHMWPE (Ultra-High-Molecular-Weight Polyethylene) and HDPE (High-Density Polyethylene) to ensure maximum durability, strength, and environmental safety.
These mats feature an extremely low water absorption rate (<0.01%), high compressive strength (≥27 Mpa), a Shore D hardness of 65, and excellent temperature resistance (heat distortion up to 85°C and embrittlement resistance down to below -40°C).
Standard sizes range from smaller panels like 610mm*1220mm (2'*4') to larger panels up to 1250mm*3100mm. Thicknesses range from 10mm to 15mm for standard sizes, and up to 20mm to 50mm for heavy-duty applications.
Yes, we provide standard colors including black, green, blue, yellow, red, white, and brown. Custom colors are also available upon request to meet your specific project needs.
They are highly versatile and ideal for construction sites, temporary access roads, utility maintenance, agricultural paths, military bases, outdoor events, and safe pedestrian walkways.
