Polyethylene - Ultra-High Molecular Weight
PE1000 has high abrasion resistance, excellent sliding properties and high toughness. It has good chemical resistance, high impact strength and low moisture absorption. PE1000 is also food compliant for all critical processing applications.
| Processing Method | Length (mm) | Width (mm) | Thickness (mm) |
|---|---|---|---|
| Mould Sheet Size | 1000 | 1000 | 10-150 |
| 1240 | 4040 | 10-150 | |
| 2000 | 1000 | 10-150 | |
| 2020 | 3030 | 10-150 | |
| Extrusion Sheet Size | Width: thickness ＞20mm, max can be 2000mm; thickness ≤20mm, max can be 2800mm Length: unlimited Thickness: 0.5 mm to 60 mm |
||

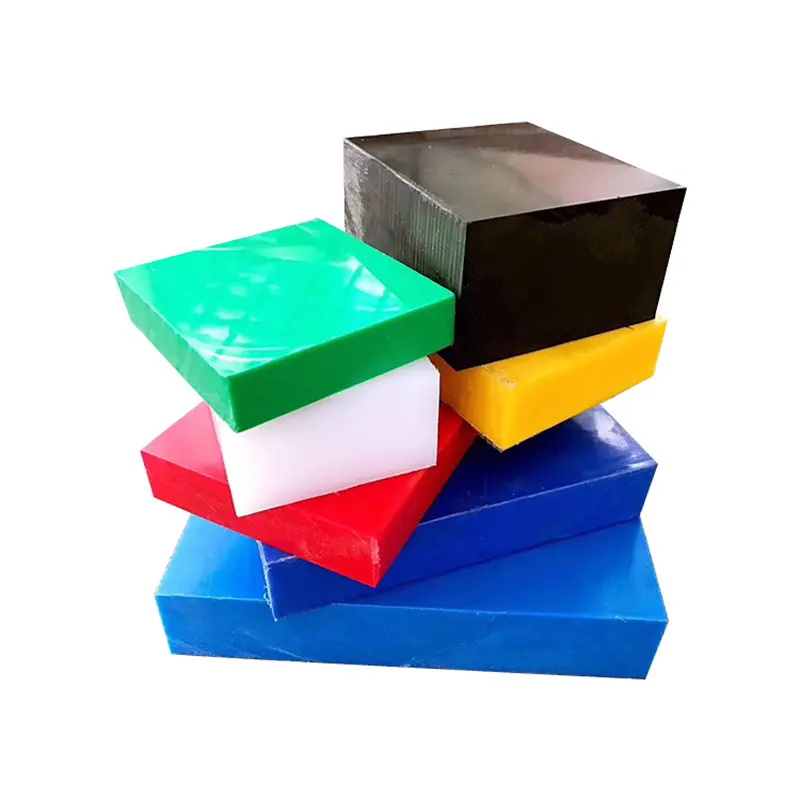

| Sheet Color | Natural; black; white; blue; green and so on | ||
| Materials | UHMWPE | PTFE | Nylon 6 | Steel A | Polyvinyl fluoride | Purple steel |
|---|---|---|---|---|---|---|
| Wear Rate | 0.32 | 1.72 | 3.30 | 7.36 | 9.63 | 13.12 |
| Materials | UHMWPE - coal | Cast stone - coal | Embroidered plate - coal | Not embroidered plate - coal | Concrete coal |
|---|---|---|---|---|---|
| Wear Rate | 0.15 - 0.25 | 0.30 - 0.45 | 0.45 - 0.58 | 0.30 - 0.40 | 0.60 - 0.70 |
| Materials | UHMWPE | Cast stone | PAE6 | POM | F4 | A3 | 45# |
|---|---|---|---|---|---|---|---|
| Impact Strength | 100 - 160 | 1.6 - 15 | 6 - 11 | 8.13 | 16 | 300 - 400 | 700 |
| Test Item | Test Method | Result |
|---|---|---|
| Static Coefficient of Friction (ps) | ASTM D1894-14 | 0.148 |
| Kinetic Coefficient of Friction (px) | ASTM D1894-14 | 0.105 |
| Flexural Modulus | ASTM D790-17 | 747MPa |
| Izod Notched Impact Strength | ASTM D256-10C1 Method A | 840J/m P (partial break) |
| Shore Hardness | ASTM D2240-15E1 | D/64/1 |
| Tensile Modulus | ASTM D638-14 | 551 MPa |
| Tensile Strength | ASTM D638-14 | 29.4MPa |
| Elongation at Break | ASTM D638-14 | 3.4 |
