POM is a kind of dystectic, high crystallinity thermoplastic engineering plastic material, its mechanical property is very close to metal material, can be used in 100°C normally.

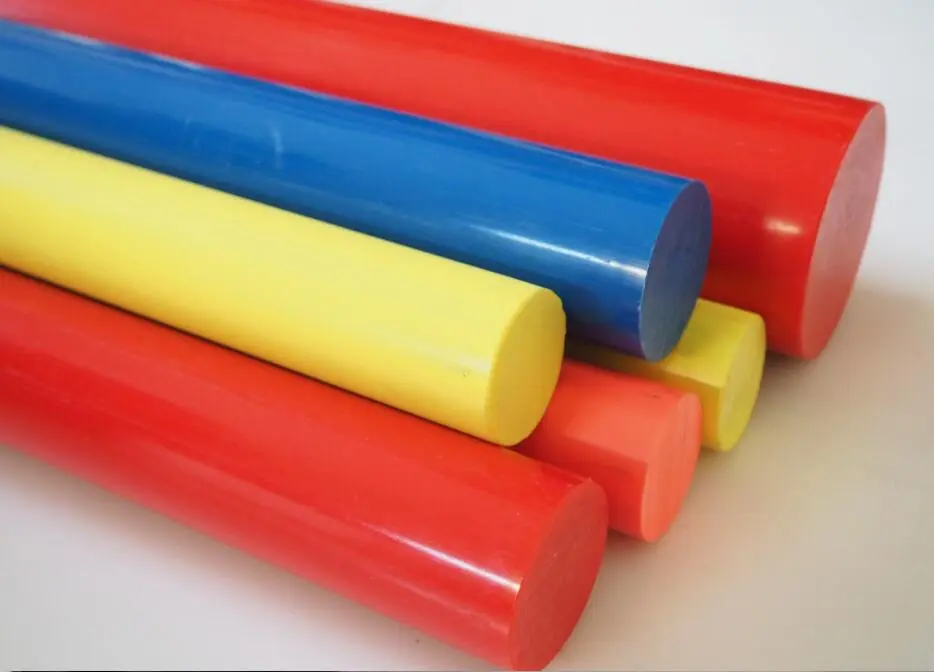

Colored POM sheet can be applied to making components and parts of mechanical equipment, such as wheel gear, bearing, pump case, which is widely employed in the field of auto industry, electronics, medical devices, packing services, food machinery.
There are POM-C and POM-H in the market, and POM-C has the most market share, because it is easy to compound and machine, and both POM-C and POM-H sheet can be offered.
| Colored POM Board Specification Data Sheet | |||||
|---|---|---|---|---|---|
|
Description | Item No. | Thickness (mm) | Width&Length (mm) | Density (g/cm3) |
| Colored POM Board | ZPOM-T-C | 10~100 | 600x1200/1000x2000 | 1.41 | |
| Tolerance (mm) | Weight (kg/pc) | Color | Material | Additive | |
| +0.2~+2.0 | / | Any Color | LOYOCON MC90 | / | |
| Volume Abrasion | Friction Factor | Tensile Strength | Elongation at Break | Bending Strength | |
| 0.0012 cm3 | 0.43 | 64 MPa | 23% | 94 MPa | |
| Flexural Modulus | Charpy Impact Strength | Heat Distortion Temperature | Rockwell Hardness | Water Absorption | |
| 2529 MPa | 9.9 kJ/m2 | 118 °c | M78 | 0.22% | |
| Item name | Thickness (mm) | Size (mm) | Tolerance for Thickness (mm) | E.S.T N.W (KGS) |
|---|---|---|---|---|
| delrin pom plate | 1 | 1000x2000 | (+0.10) 1.00-1.10 | 3.06 |
| 2 | 1000x2000 | (+0.10) 2.00-2.10 | 6.12 | |
| 3 | 1000x2000 | (+0.10) 3.00-3.10 | 9.18 | |
| 4 | 1000x2000 | (+0.20)4.00-4.20 | 12.24 | |
| 5 | 1000x2000 | (+0.25)5.00-5.25 | 15.3 | |
| 6 | 1000x2000 | (+0.30)6.00-6.30 | 18.36 | |
| 8 | 1000x2000 | (+0.30)8.00-8.30 | 26.29 | |
| 10 | 1000x2000 | (+0.50)10.00-10.5 | 30.50 | |
| 12 | 1000x2000 | (+1.20)12.00-13.20 | 38.64 | |
| 15 | 1000x2000 | (+1.20)15.00-16.20 | 46.46 | |
| 20 | 1000x2000 | (+1.50)20.00-21.50 | 59.76 | |
| 25 | 1000x2000 | (+1.50)25.00-26.50 | 72.50 | |
| 30 | 1000x2000 | (+1.60)30.00-31.60 | 89.50 | |
| 35 | 1000x2000 | (+1.80)35.00-36.80 | 105.00 | |
| 40 | 1000x2000 | (+2.00)40.00-42.00 | 118.83 | |
| 45 | 1000x2000 | (+2.00)45.00-47.00 | 135.00 | |
| 50 | 1000x2000 | (+2.00)50.00-52.00 | 149.13 | |
| 60 | 1000x2000 | (+2.50)60.00-62.50 | 207.00 | |
| 70 | 1000x2000 | (+2.50)70.00-72.50 | 232.30 | |
| 80 | 1000x2000 | (+2.50)80.00-82.50 | 232.30 | |
| 90 | 1000x2000 | (+3.00)90.00-93.00 | 268.00 | |
| 100 | 1000x2000 | (+3.50)100.00-103.5 | 299.00 | |
| 110 | 610x1220 | (+4.00)110.00-114.00 | 126.8861 | |
| 120 | 610x1220 | (+4.00)120.00-124.00 | 138.4212 | |
| 130 | 610x1220 | (+4.00)130.00-134.00 | 149.9563 | |
| 140 | 610x1220 | (+4.00)140.00-144.00 | 161.4914 | |
| 150 | 610x1220 | (+4.00)150.00-154.00 | 173.0265 | |
| 160 | 610x1220 | (+4.00)160.00-164.00 | 184.5616 | |
| 180 | 610x1220 | (+4.00)180.00-184.00 | 207.6318 | |
| 200 | 610x1220 | (+4.00)200.00-205.00 | 230.702 |
